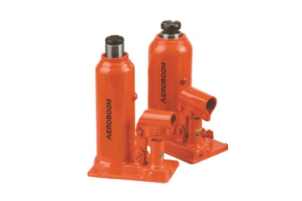

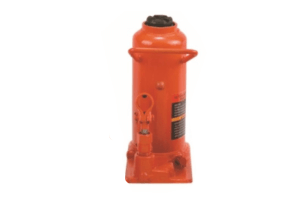

Bottle Jacks (Abj Series)

Bottle Jacks (Abj Series)
Bottle Jacks (Abj Series) - Image 2
Bottle Jacks (Abj Series) - Image 3

Model Number Capacity Stroke Min. Height Max. Height Head Screw  Weight Ton (mm) (mm) (mm) mm Kg ABJ-02 2 165 180 345 50 2.29 ABJ-03 9 173 191 364 60 2.79 ABJ-05 5 188 200 388 70 3.79 ABJ-08 8 192 200 392 70 5.69 ABJ-12L 12 163 177 340 76 6.58 ABJ-12 12 225…

Description

FEATURES:
  1. Complies with ANSI/ASME PALD standards and CS/GS.
  2. Forged base and cylinder to ensure strength and eliminate leaks.
  3. Chromed pump piston and ram for added rust resistance.
  4. In-line design makes the jack more easier to position and operate.



Reviews

There are no reviews yet.

Be the first to review “Bottle Jacks (Abj Series)”

Your email address will not be published. Required fields are marked *

Related products

  • CMT#N - Spring Return Pulling Cylinders In Steel

    CMT#N – Spring Return Pulling Cylinders In Steel

    Read more
  • PS -Steel Hand Pumps 400 – 700 – 1000 Bar

    PS -Steel Hand Pumps 400 – 700 – 1000 Bar

    Read more

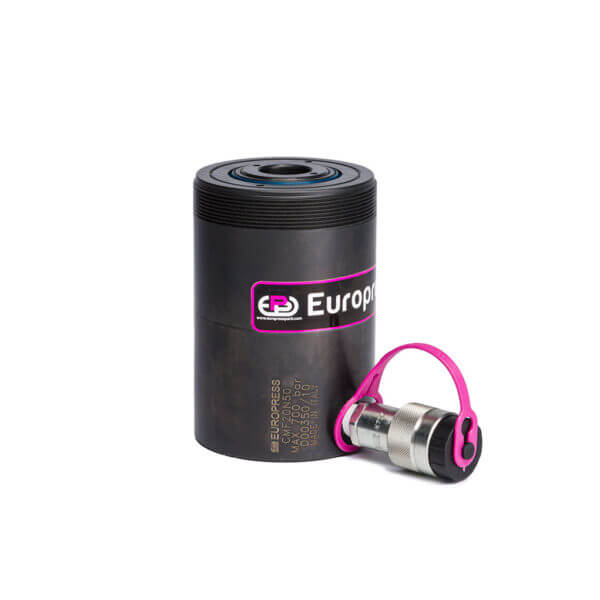

  • CMF#L - Steel Hollow Piston Cylinders

    CMF#L – Steel Hollow Piston Cylinders Spring Return

    Read more
  • CGR - Cilinders

    CGR – Cilinders, Load Return With Safety Nut – Low Profile

    Read more

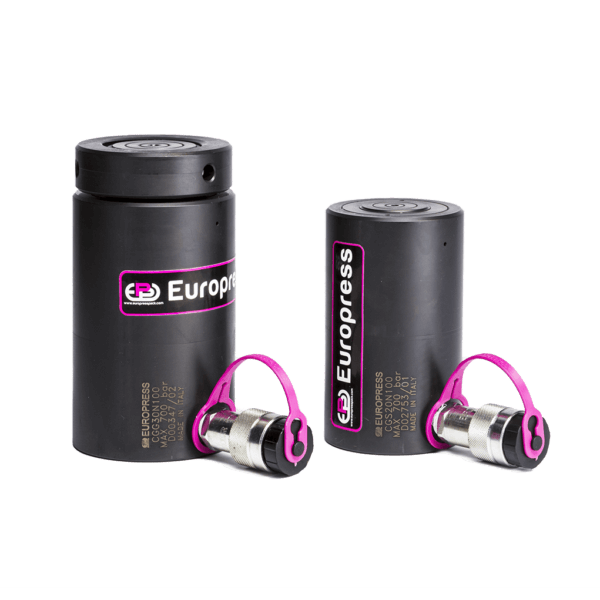

  • CGS#N - Cylinders
