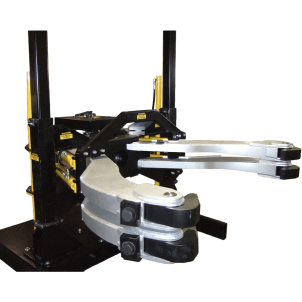

Posilock 200 Ton Hydraulic Puller Abhp Series

Posilock 200 Ton Hydraulic Puller Abhp Series
Posilock 200 Ton Hydraulic Puller Abhp Series - Image 2

Features and Benefits    • 10,000 PSI electric two-stage pump • Remote jog switch with 10-foot cord (3.05 m) • 200-ton cylinder, 10,000 PSI and double acting 13.25 (337 mm) stroke • Hydraulic-actuated lift cart extends puller from ground to a height of 5 feet (1.52 m) • Jaws are hydraulically controlled with cylinders •…

Description

HYDRAULIC PULLER
MODEL NO: ABPH-200T
Model : ABPH-200T
Jaws : 4
Capacity: 200 ton (1779 kN)
Spread: 6.5 to 70 in. (165 to 1778 mm)
Overall Length: 78.5 in (1994 mm)
Reach: 48 in. (1219 mm)
Jaw Length: 53 in. (1346 mm)
Jaw Tip Width: 1.25 in. (32 mm)
Tip Clearance: 3.5 in. (89 mm)
Tip Depth: 3.5 in. (89 mm)
Weight: 4150 lbs (1882 kg)
