Shop

  • UMS - Martinetto In Acciaio

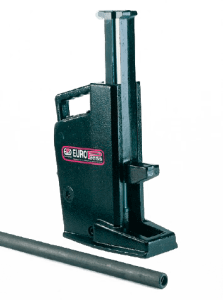

    UMS – Martinetto In Acciaio

    Caratteristiche Tecniche

    – Sezione frontale ridotta per essere utilizzata dove lo spazio d’accesso al carico è molto limitato. Dispone inoltre di una staffa con altezza di soli 41 mm da terra per il sollevamento di carichi con punti di ancoraggio molto bassi
    – Staffa in acciaio ad alta resistenza che scorre internamente al martinetto ed essendo quindi ampiamente guidata offre un’ottima resistenza ai carichi disassati
    – Resistenza alla massima spinta sia della testa sia del piede della staffa
    – Stabilità laterale assicurata dalla base allungata
    – Facilità d’uso: il meccanismo unico di azionamento della pompa e della valvola di scarico rendono questo martinetto semplice da usare anche in condizioni operative difficili
    – Valvola di sicurezza interna che evita il rischio di sovrapressioni. Inoltre una valvola di arresto impedisce il collassamento del martinetto nell’eventualità disovraccarichi accidentali.

    CAMPI DI UTILIZZO
    Progettato con un elevato fattore di sicurezza per operare in condizioni particolarmente severe, questo martinetto, costruito interamente in acciaio e assolutamente privo di qualsiasi parte in alluminio, viene largamente impiegato in campo minerario.

    Read moreDone
  • Undercut Bolt Sets

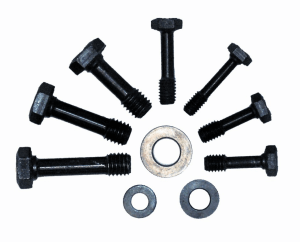

    Undercut Bolt Sets

    The UB200 and UB300 sets feature hardened, grade-8 bolts with maximum clearance and through-hardened, plated washers. Replacements for bolts found in these kits are available without any minimum quantity requirements, and our machine shop can produce additional bolt and washer sizes to suit your specifications.

    Read moreDone
  • UP - Presses

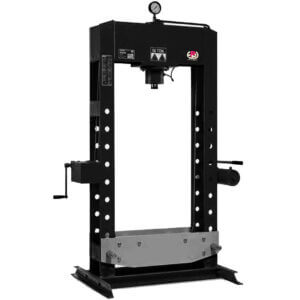

    UP – Presses

    Features

    Made of steel and equipped with an hydraulic part, they are produced on request and can be customised according to specific needs. The hydraulic part is made of standard products with a single or double acting cylinder, a single or double stage pump, and a gauge to guarantee a better safety and they are completed with a winch in order to lift the bed quickly and easily.

    Read moreDone
  • V-Rad Select

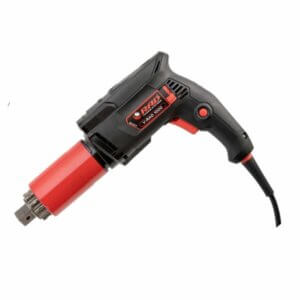

    V-Rad Select

    PART NUMBER TOOL MODEL DRIVE SIZE TORQUE LOW (Nm) HIGH RPM WEIGHT (Kg) DIMENSION (mm) DIMENSION (mm) DIMENSION C (mm) DIMENSION D (mm)
    25633 V-RAD SELECT 1400 0.75″ 140 1400 8.8 3.9 305 64 74 203
    25634 V-RAD SELECT 2000 1.0″ 200 2000 5.5 5.9 311 69 74 203
    25636 V-RAD SELECT 4000 1.0″ 400 4000 3.8 6.2 343 79 79 203
    Read moreDone
  • VALVE VLE – In-line Electric Valves

    VALVE VLE – In-line Electric Valves

    VLE pressure 700 bar

    Model Description Symbol
    VLE31

     3-way 3 position electric control valve.
    – Advance
    – Hold
    – Return
    VLE41

    4-way 3 position electric control valve.
    – Advance
    – Hold
    – Return
    VLE42

    4-way 3 position electric control valve pilot operated check valve.
    – Advance
    – Hold with pilot check
    – Return
    VLE53

    4-way 3 position electric control valve counterbalance valve
    – Advance
    – Hold with counterbalance valve on A
    – Return
    Read moreDone
  • VALVE VLS – In-line Manual Valves Spring Return In Central Position

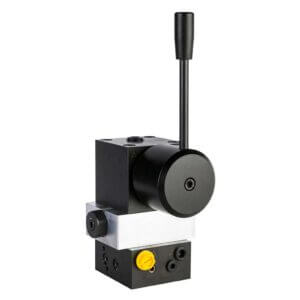

    VALVE VLS – In-line Manual Valves Spring Return In Central Position

    Features

    VLS pressure 700 bar

    Model Description Symbol
    VLS31

    3-way 3 position manual control valve.
    – Advance
    – Hold
    – Spring return in central position
    VLS32

    3-way 3 position manual control valve pilot operated check valve.
    – Advance
    – Hold with pilot check
    – Spring return in central position
    VLS41

    4-way 3 position manual control valve.
    – Advance
    – Hold
    – Spring return in central position
    VLS42

    4-way 3 position manual control valve pilot operated check valve.
    – Advance
    – Hold with pilot check
    – Spring return in central position
    VLS53

    4-way 3 position manual control valve counterbalance valve
    – Advance
    – Hold with counterbalance valve on A
    – Spring return in central position
    Read moreDone
  • Valves Vlm In-line Manual Valves

    Valves Vlm In-line Manual Valves

    Features

    VLM pressure 700 bar

    Model Description Symbol
    VLM31

    3-way 3 position manual control valve.
    – Advance
    – Hold
    – Return
    VLM32

    3-way 3 position manual control valve pilot operated check valve.
    – Advance
    – Hold with pilot check
    – Return
    VLM35

    3-way 3 position manual control valve pilot operated check valve, P closed
    – Advance
    – Hold with pilot check
    – Return
    VLM36

    3-way 3 position manual control valve closed center.
    – Advance
    – Hold
    – Return
    VLM41

    4-way 3 position manual control valve.
    – Advance
    – Hold
    – Return
    VLM42

    4-way 3 position manual control valve pilot operated check valve.
    – Advance
    – Hold with pilot check
    – Return


    VLM53

    4-way 3 position manual control valve counterbalance valve.
    – Advance
    – Hold with counterbalance valve on A
    – Return
    VLM45

    4-way 3 position manual control valve pilot operated check valve, P closed
    – Advance
    – Hold with pilot check
    – Return
    VLM46

    4-way 3 position manual control valve closed center.
    – Advance
    – Hold
    – Return
    VLM48 4-way 3 position manual control valve.
    – Advance
    – Hold
    – Return
    Read moreDone
  • VME -Valves For Modular Power Packs

    VME -Valves For Modular Power Packs

    Features

    Electric controlled valves selection chart (230VAC Voltage)

    Model For use with Valve function Symbol
    VME21 Single acting

    Advanced – return
    VME22

    Advanced – hold – return
    VME31

    Advanced – hold – Return
    VME41 Double acting

    Advanced – hold – Return
    VME42

    Advanced – hold with pilot check – Return
    VME51

    Advanced – hold – Return at 150 bar
    VME52 Advanced – hold with pilot check – Return at 150 bar
    VME53 Advanced – hold with counterbalance valve on A – Return at 150 bar
    VMEW Advanced – hold for use torque wrenches
    Read moreDone
  • VMM -Valves For Modular Power Packs

    VMM -Valves For Modular Power Packs

    Features

    Manual controlled valves selection

    Model For use with Valve function Symbol
    VMM20 To shift control to in-line valve

    Outlet P e T with by pass
    VMM21 Single acting

    Advance – hold – return
    VMM31*

    Advance – hold – return
    VMM32

    Advance – hold with pilot check – return
    VMM41 Double acting

    Advance – hold – return
    VMM42

    Advance – hold with pilot check – return
    VMM51

    Advance – hold – return at 150 bar
    VMM52 Advance – hold with pilot check – return at 150 bar
    VMM53 Advance – hold with counterbalance valve on A – return at 150 bar
    Read moreDone
  • VMS-Vmp Valves For Modular Power Packs

    VMS-Vmp Valves For Modular Power Packs

    Manual controlled valves selection chart – spring return in central position

    Model For use with Valve function Symbol
    VMS31 Single acting

    Advance – hold – return
    VMS32

    Advance – hold with pilot check -return
    VMS41 Double acting

    Advance – hold – return
    VMS42

    Advance – hold with pilot check -return
    VMS51

    Advance – hold – return at 150 bar
    VMS52

    Advance – hold with pilot check – return at 150 bar
    VMS53

    Advance – hold with counterbalance valve on A – return at 150 nbar
    Read moreDone
  • Zoh -hydraulic Oil

    Zoh -hydraulic Oil

    Features

    EUROPRESS high pressure hydraulic oil is a mineral based oil to ISO VG 32 with excellent viscosity and lubrication properties. The use of EUROPRESS oil will ensure maximum efficiency and long life service of the equipment . EUROPRESS hydraulic oil is non foaming, will not leave gummy deposits nor corrode valve seats, seals or gaskets or the cylinder walls.

    Supplied in 1, 5 and 10 litres containers.

    Code:

    – ZO1 – 1 litre Container
    – ZOH5 – 5 litres Container
    – ZOH10 – 10 litres Container

    Read moreDone
