Fast Facts:
- Rolled/knurled shank ensures secure placement in the PCB.
- Suitable for wire wrapping or a test point for CRO tubes.
- Assembly applications include terminal posts and wire wrap.
Specifications:
- Sizes: 1.6mm, 2.4mm and 3.2mm (1/16”, 3/32″ and 1/8”)
- Materials: Electro tin-plated* brass (WEEE & RoHS compliant)
- Headforms: Dome
| AVLUG® – SERIES |
| Material |
Headform |
Series
|
| Electro tin-plated* brass |
Dome |
Avlug® 1107 |
* Avdel® recommends tin-plated Avlug® parts are installed within nine months from the date they were produced.
Surface finish options
If you are looking for other surface finish options than shown in the above datasheets please download our.
-
Fast Facts:
- Blind hole, one-sided installation capability.
- Internally threaded bore takes a threaded part e.g. D-subminiature connectors.
- Available in many stand-off heights to accommodate a wide variety of components.
- Can be used for board thicknesses of 0.8-2.0 mm (short spigot) or 0.8-2.4 mm max (long spigot).
- Suitable as a female mating bush for D-subminiature connectors.
- Available as a customized design to meet your unique assembly requirements.
- Popular assembly applications include aluminum geartrays and extrusions, d-connectors, PCBs, and telecommunications equipment.
Specifications:
- Sizes: M2.5 X 0.45 and M3 X 0.5 threads
- Material: Tin-plated* brass
| AVSERT® – SERIES |
| Material |
Version |
Series |
| Tin-plated* brass |
short spigot |
Avsert® 1117 |
| Tin-plated* brass |
long spigot |
Avsert® 1118 |
* Avdel® recommends tin-plated Avsert® parts are installed within 24 months from the date they were produced.
-
Fast Facts:
- Blind hole, one-sided installation capability.
- Annular grooves on the body expand radially during installation.
- Provides a vibration-resistant joint, increased pull-out resistance, and good residual clamp.
- Available options accommodate most combinations of connector and PC board thickness.
- Available as a customized design to meet your unique assembly requirements.
Specifications:
- Sizes: 2.5mm and 2.8mm
- Materials: Electro tin plated* brass and aluminum alloy (WEEE & RoHS compliant)
- Headforms: Dome
| AVTRONIC® – SERIES |
| Material |
Headform |
Series
|
| Aluminum alloy |
Dome |
Avtronic® 1189
|
| Electro tin-plated* brass |
Dome |
Avtronic® 1188 |
* Avdel® recommends tin-plated Avtronic® fasteners are installed within nine months from the date they were produced.
-
Fast Facts:
- Bulbed tail and foreshortening of the fastener during installation ensures high clamp.
- Bulbed tail and large headform provide a large bearing area for soft materials.
- Tapered tail for ease of hole entry.
- Expands radially during installation to ensure maximum hole fill.
- Lower in-place costs than welding or nail rivets.
- Placed using a unique repetition mandrel system for high-speed assembly.
- Can be bowl fed for larger volume applications using automated equipment.
- Available as a customized design to meet your unique assembly requirements.
- Popular assembly applications include automotive, electronic components, sheet metal, electrical engineering, domestic appliances, furniture, and general light fabrication.
Specifications:
- Sizes: 2.4mm (3/32″) to 6.0mm
- Materials: Aluminum alloy, steel, stainless steel, brass, and tin-plated brass*
- Headforms: Dome/mushroom, countersunk
-
Fast Facts:
- Internally tapered bore ensures consistent light clamp to reduce potential damage to soft or brittle materials.
- The light clamp makes it ideal for use as a pivot pin or hose tail.
- Expands radially during installation to ensure maximum hole fill.
- Lower in-place costs than welding or nail rivets.
- Placed using a unique repetition mandrel system for high-speed assembly.
- Can be bowl fed for larger volume applications using automated equipment.
- Available as a customized design to meet your unique assembly requirements.
- Popular assembly applications include automotive, electronic component, sheet metal, electrical engineering, injection molded components, switchgear, domestic appliance, and light fabrication.
Specifications:
- Sizes: 2.4mm to 6.4mm (3/32″ to ¼”)
- Materials: Aluminum alloy, steel, brass, nickel-plated brass, and tin-plated brass*
- Headform: Dome/mushroom and countersunk
| CHOBERT® – SERIES |
| Material |
Headform |
Series
|
| Aluminum Alloy |
Dome
120° Countersunk
Low profile |
Chobert® 1125/31/35/64
Chobert® 1124/32/36
Chobert® 1162 |
| Steel |
Dome
120° Countersunk |
Chobert® 1121
Chobert® 1122 |
| Brass
– electro tin plated*
– nickel plated |
Dome
Countersunk
Dome
Countersunk
Dome
Countersunk |
Chobert® 1141
Chobert® 1142
Chobert® 1143
Chobert® 1144
Chobert® 1147
Chobert® 1148 |
* Avdel® recommends tin-plated Chobert® fasteners are installed within nine months from the date they were produced.
-
Fast Facts:
- Flush surface on both sides of the component.
- Reduces excess space requirements within the chassis.
- Common hole form can be used throughout the chassis design to reduce complexity.
- Can be installed from either direction if accessible.
- Expands radially in the material during installation.
- Provides superior joint strength when compared to competitive technologies.
- One-piece fastener eliminates potential stem fall out that can cause electrical problems.
- Rapid installation with magazine or bowl feed fasteners.
- Available as a customized design to meet your unique assembly requirements.
- Popular electronics industry assembly applications include computer chassis, casings, small electronic devices, and applications with exceptionally thin sheet.
- Size: 3.2 mm (1/8″) diameter
- Material: Steel with Zinc clear passivation
- Head Form: Countersunk
-

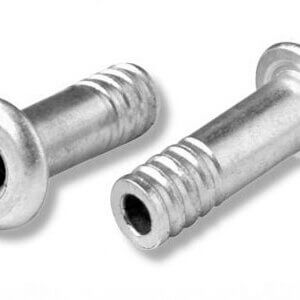

Fast Facts:
- Provides a vibration-resistant joint with increased pull-out resistance.
- Suitable for blind hole applications.
- Placed using a unique repetition mandrel system for high-speed assembly.
- Available as a customized design to meet your unique assembly requirements.
- Can be used to fasten: metal to metal, metal to plastic, plastic to plastic, aluminum alloy, wood, and fiberglass.
- Assembly applications include automotive, electrical equipment, domestic appliance, and injection-molded components.
Specifications:
- Sizes: 2.4mm to 4.8mm (3/32″ to 3/16″)
- Materials: Aluminum alloy and steel
- Headforms: Dome/mushroom or countersunk
-
Fast Facts:
- Multi-grip capability accommodates wide variations in material thickness.
- One rivet can be used to replace several standard grip fasteners.
- External splines fill rear sheet and oversize front sheet holes.
- 3x greater hole-size tolerance than standard breakstem rivets.
- Far less sensitive to application variations.
- Easier specification due to one-rivet x one-mandrel solution.
- Typically half the installed weight versus an equivalent breakstem rivet.
- Either magazine-fed or fed via a vibrating bowl to a wide choice of installation equipment.
- Assembly applications where you will find NeoSpeed® fasteners include automotive, electronic, domestic appliance, electrical equipment, and general light fabrication.
Specifications:
- Sizes: 3.2 mm (1/8″) to 4.8 mm (5/32″)
- Materials: Steel, Stainless Steel A4, Aluminum
- Head Styles: Mushroom, Countersunk
