New Products

  • ALP3-Series-700-Bar-1

    3 Speed Torque Wrenches Pump ALP3 SERIES (700 Bar)

    Model Work Pressure (Bar) Drive Voltage Power Tank Cap Flow Rate Oil Cooler Oil Outputs LxW*H(mm) Weight (kg)
    ALP3-2 700 Electric 220V/50Hz 1.1KW 5.5L 7-1.6-0.8Limin Yes NPT 445*304*426 25
    ALP3-4 700 Electric 220V/50Hz 1.1KW 5.5L 7-1.6-0.8Limin Yes 8*1/4″ NPT 461*304*426 27
    Read moreDone
  • 3d-Hydraulic-Adjustment-Equipment-Block-Lifter

    3d Hydraulic Adjustment Equipment- Block Lifter – AHBL Series

    Model Capacity Ton Working Pressure Bar Vertical Adjustment Range mm Horizontal Adjus tment Range mm Tilt Angle mm Weight Ton
    AHBL-100 100 700 250 150 5 2.3
    AHBL-200 200 700 250 150 5 2.8
    AHBL-300 300 700 250 150 5 3.4
    AHBL-400 400 700 250 150 5 4.0
    AHBL-500 500 700 250 150 5 4.6
    AHBL-600 600 700 250 150 5 5.8
    Read moreDone
  • ABLE-Series-1

    Articulating Boom Lifts (Electric) ABLE Series

    ABLE14JE ABLE20JE
    Model imperial Metric Imper ial Metric
    Size
    Work Height 52# 6in 16m 70ft 4in 21.45m
    Platform Height 45# 11in 14m 63# 10in 19.45m
    Horizontal Outreach 248 7in 7.50m 39ft 6in 12.05m
    Up and Over Height 25# Sin 7.74m 27ft 1in 8.25m
    A- Stowed Length 218 8in 6.6m 28ft 7in 8.72m
    B Stowed Width 5ft 9in 1.75m 8# 2in 2.49m
    C Stowed Height 6ft 7in 2m 8# 3in 2.56m
    D Platform Length 4tt 12in 1.52m 6.00ft (standard) 8.01ft, (option) 1.83m (standard) 2.44 (option)
    E- Platform Width 2ft 6in 0.76m 2.496 (standard) (option) 0.76m (standard) 0.91. (option)
    -Wheelbase 6ft 9in 2.05m 8# 3in 2.52m
    G Ground Clearance 8in 0.20m 0.33m
    Performance
    Platform Capacity 510 lb 230kg 550 lb 250kg
    Drive Speed 3.79 mph 6. 1km/h 3.79 mph 6.1km/h
    Gradeability 30%(17′) 45%(24*)
    sin 0.20m
    Tuming Radus (Inside) 2ft 7in 0.79m 9ft 1in 2.78m
    Turning Radius (Outside) 10ft 4in 3.15m 18ft 5.49m
    Swing 360 continuous 360* continuous
    Platform Rotation +90 +90
    H-Tail Swing Oin Om 2ft 0.6m
    Max. Working Slope 2/4° 3/5
    Max. Wind Speed 27 96mph 12.5m/s 27 96mph 12.5m/s
    Power
    Battery (Optional) 24x2V/320Ah 24x2V/440Ah
    Charger (Optional) 48V60A 48V/60A
    Drive Motor AC 32V AC 32V AC 32V AC 32V
    Lift Motor DC 48V DC 48V AC 32V AC 32V
    Auxiliary Power Manual Pump 12V DC
    Hydraulic Tank Capacity 7 9(us gal) 30L 19. 8(us gal) 75L
    Drive 4WD
    Tire
    Type Foam-filled 240/55D17.5 Tires 33x 12 Foam-filled D610 Tires
    Weight
    Gross 14991 lb 6800kg 20283 lb 9200kg
    Read moreDone
  • Automatic-Locomotive-Re-railing-Machine-1

    Automatic Locomotive Re-railing Machine – ARRG/B/D Series

    Model Available oil capacity L Motor Output Power KW Dimensions LxWxH mm Weight Kg
    ARRG-70 40 Gasoline Engine 3.5 560 x 540 x 665 55 kg
    ARRB-70 40 220 V/50 Hz 2.2 560 x 540 x 695 60 kg
    ARRD-70 40 diesel engine 5 550 x 480 x 750 810kg
    Read moreDone
  • EMAX-EMAWX-Series

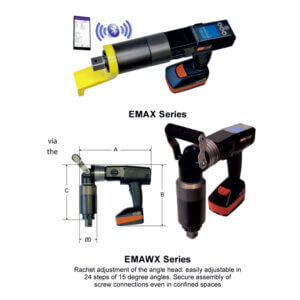

    Battery Operated Torque Wrenches EMAX & EMAWX Series

    Model Square Drive Min Torque (Nm) Max Torque (Nm) Length A (Without Square Drive) (mm) Height B (Overall) (mm) Diameter C (Gear Holding) (mm) Diameter D (Gear Box) (mm) Weight (Without DMA) (kg) Gang 1 (idlingSpeed) (rpm) Gang2 (Idling Speed) (rpm)
    EMAX-40A 3/4″ 20 450 300 270 78.0 77.0 4.9 18.0 54.0
    EMAX-80A 3/4″ 50 800 300 270 78.0 77.0 5.2 9 27
    EMAX-150A 1° (3/4″) 100 1500 345 270 78.0 77.0 6.1 5 15
    EMAX-300A 1° 200 3000 345 270 78.0 77.0 6.2 2.5 7.5
    EMAX-450A 300 4500 405 270 78.0 90.0 8.9 1.5 4.5
    EMAX-600A 1¹/” 400 6000 420 270 78.0 102.0 11.0 1 3
    Model Square Drive Min Torque (Nm) Max Torque (Nm) Length A (Without Square Drive) (mm) Height B (Overall) (mm) Height C Without Square (mm) Diameter D (Gear Box) (mm) Weight (Without DMA) (kg) Gang 1 (Idling Speed) (rpm) Gang2 (Idling Speed) (rpm)
    EMAWX-40A 3.4″ 20 450 315 270 200 77.0 6.8 18.0 54.0
    EMAWX-80A 3.4″ 50 800 315 270 200 77.0 7.1 9 27
    EMAWX-150A 1″(3/4″) 100 1500 315 270 243 77.0 8.0 5 15
    EMAWX-300A 1″ 200 3000 315 270 243 77.0 8.1 2.5 7.5
    EMAWX-420A 1″ 300 4200 315 270 280 90.0 10.1 1.5 4.5
    EMAWX-450A 115″ 300 4500 315 270 305 90.0 10.8 1.5 4.5
    EMAWX-600A 114″ 400 6000 315 270 315 102.0 12.9 1 3
    Read moreDone
  • EMEG-EMEGW-Series-1

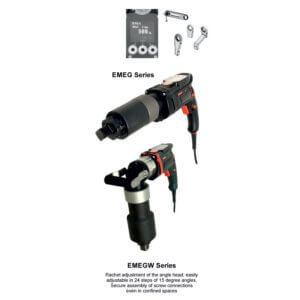

    Electrical Torque Wrenches EMEG & EMEGW Series

    Model Square Drive Min Torque (Nm) Max Torque (Nm) Length A (Without Square Drive) (mm) Height B (Gear Ring) (mm) Diameter c (Gear Holding) (mm) Diameter D (Gear Box) (mm) Weight (Without DMA) (kg) Idling Speed (rpm)
    EMEG-80A 3/4″ 100 800 335 205 77.0 77.0 5.1 24
    EMEG-150A 1″ (3/4″) 150 1550 370 205 77.0 77.0 6.5 14
    EMEG-300A 1″ 300 3000 370 205 77.0 77.0 6.5 7
    EMEG-420A 1″ 800 4200 420 205 77.0 90.0 8.5 4.5
    EMEG-500A 1¹/²” 1000 5400 440 205 77.0 90.0 10.2 3.6
    EMEG-600A 1¹/2″ 1000 6500 460 205 77.0 102.0 11.2 3
    EMEG-750A 11/2″ 1000 8000 460 205 77.0 102.0 11.3 2
    Model Square Drive Min Torque (Nm) Max Torque (Nm) Length A without Square (mm) Height B (Overall) (mm) Diameter C (Gear Holding Ring) (mm) Diameter D (Gear Box) (mm) Helght E (Without square) (mm) Weight (Without DMA) (kg) Idling Speed (rpm)
    EMEGW-80A 3/4″ 100 800 315 205 77.0 77.0 208 5.1 24
    EMEGW-150A 1″(3/4″) 150 1550 315 205 77.0 77.0 243 6.5 14
    EMEGW-300A 1″ 300 3000 315 205 77.0 77.0 243 6.5 7
    EMEGW-420A 1″ 800 4200 315 205 77.0 90.0 280 8.5 4.5
    EMEGW-500A 1¹/²” 1000 5400 315 205 77.0 90.0 297 10.2 3.6
    EMEGW-600A 1¹/²” 1000 6500 315 205 77.0 102.0 317 11.2 3
    EMEGW-750A 1¹/²” 1000 8000 315 205 77.0 102.0 317 11.3 2
    Read moreDone
  • APHL-Series

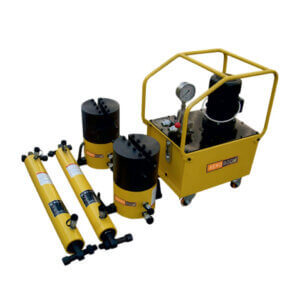

    Hydraulic Pusher On-track Heavy Load – APHL Series

    Model APHL-200T APHL-400T
    1xclamping cylinder, 1xpushing-moving cylinder, 1xelectric hydraulic pump, 4x6m hydraulic hose, 1xdistributing valve 2xclamping cylinder, 2xpushing-moving cylinder, 2xelectric hydraulic pump, 8x6m hydraulic hose, 2xdistributing valve
    Prepared by user 2xactive sliding boots, 2xpassive sliding boots, 200T equipment 4xactive sliding boots, 4xpassive sliding boots, 400T equipment
    Connect 1xclamping cylinder and 1xpushing-moving cylinder by hydraulic hose in series, driving by 1xelectric hydraulic pump Connect 2xclamping cylinders, 2xpushing- moving cylinders, 2xelectric hydraulic pumps and 2xdistributing valves by hose in series, driving by 2xelectric hydraulic pumps
    Read moreDone
  • Intelligent-Hydraulic-Mobile-Lifting-Trolley

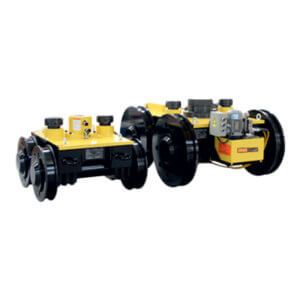

    Intelligent Hydraulic Mobile Lifting Trolley AMLT Series

    Model AMLT-300
    Double acting lock nut
    hydraulic cylinder    		 Capacity: 300T
    Working pressure: 700 Bar
    Stroke: 250 mm
    Electric Hydraulic Pump Motor Power: 1.1 KW( frequency conversion) 380V 50Hz
    (Can be customized)
    Working Pressure: 700 Bar
    Flow: 1L/min
    Oil Tank Capacity: 25L
    Walking motor power 4 KW+ Reduction Box （ manual disconnecting device）
    Walking speed 0〜1.3 m/min （ frequency control）
    Wheel diameter 760 mm
    Wheel track 960 mm
    Track gauge 1200 mm
    Screw rod support Load 100T/piece
    Dimensions 2470mm×1442mm×940mm
    Read moreDone
  • AISL-Series

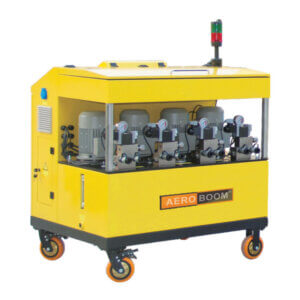

    Intelligent Synchronous Lifting Hydraulic System AISL Series

    Model Points Synchronous Precision mm Motor Power KW Voltage AC/V Working Pressure bar Flow L/min Oil Tank Capacity L Dimensions (LXWXH) mm Net Weight Kg
    AISL-2A 2 Points s +0.2 1.1X2 380 700 1X2 130 760x820x1150 180
    AISL-2B 2 Points S +0.2 2.2X2 380 700 2X2 130 760x820x1150 240
    AISL-2C 2 Points s +0.2 5.5X2 380 700 4X2 250 960x880x1170 300
    AISL-4A 4 Points s +0.2 1.1X4 380 700 1X4 200 1100x875x1160 350
    AISL-4B 4 Points s +0.2 2.2X4 380 700 2X4 250 1200x820x1120 430
    AISL-4C 4 Points s +0.2 5.5X4 380 700 4X4 500 1100x960x1130 550
    Read moreDone
  • AMSL-Series-1

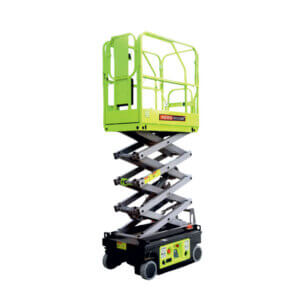

    Micro Scissor Lifts AMSL Series

    AMSL0407DC AMSL0407DC-Li
    Model imperial Metric Imperial Metric
    Size
    Work height 211 4in 6.5m 21ft 4in 6.5m
    A-Platform Height- Elevated 14ft 9in 4.5m 14m 9in 4.5m
    B -Platform Height-s Stowed 3ft 1in 0.95m 3# 1in 0.95m
    C-Platform Length 4ft 3in 1.29m 4tt 3in 1.29m
    D-Platform Width 2ft 4in 0.7m 2# 4in 0.7m
    2ft 0.6m 2# 0.6m
    E-Overal Height (Rais Up) 6ft 9in 2.05m 6ft 9in 2.05m
    Overall Height (Rails Down) 5# 7in 1.7m 1.7m
    F-Overall Length 4ft 9in 1.44m 4ft 9in 1.44m
    G-Overall Width 2ft 6in 0.76m 2# 6in 0.76m
    H Wheelbase 3ft Sin 1.05m 3# Sin 1.05m
    -Ground Clearance (Stowed) 2.4in 0.06m 2.4in 0.06m
    J-Ground Clearance (Raised) 0.65in 0.017m 0.65in 0.017m
    Platform Capacity 530lb 240kg 530lb 240kg
    Capacity on Deck Extension 220b 100kg 220lb 100kg
    Max. Number of Workers 2 2
    Drive Speed (Stowed) 2.5mph 4kmh 2.5mph 4km/h
    Drive Speed (Raised) .5mph 0.8kmh 0.5mph 0.8kmh
    Turning Radius (Inside) 11 4in 0.4m 1ft 4in 0.4m
    Turning Radius (Outside) 5ft 3in 1.6m 5f 3in 1.6m
    Litting Motor 24V/1.2KW 24V/1.2KW
    Drive Motor 24V/2×0.45KW 88s/60s
    Up/Down Time 23/25s 88s/60s
    Gradeability 30%(17′) 25%(14″)
    Max. Working Slope (Leteral/Vertical) 1.5%3 1.5°/3′
    Control Proportional Control Proportional Control
    Drive Rear Wheels Rear Wheels
    Brake Rear Wheels Rear Wheels
    Tyre Ø9inx3 3in Ø230mm x80mm Ø9in 33in 0230mm x80mm
    Tire
    Battery (Optional) 2x12V/85Ah 102Ah Li-ion Battery
    Charger (Optional) 24V/15A 24V/15A
    Read moreDone
  • m7

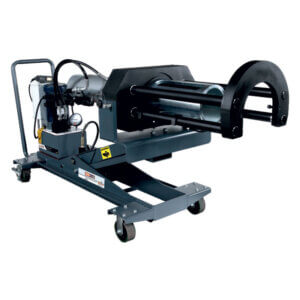

    Roller Bearing Puller/ Installer 100 Ton – CTRB SERIES ( Cartridge Taper Roller Bearing Puller Rail Road Edition)

    Accessory Description
    Pulling Shoe Insert Adapter
    Guide Tube & Cap Screw Assembly
    Cap Screw**
    Guide Tube Adapter
    Installing Tube Adapter Ring

    Class & Size(inch) of bearing assembly to be serviced

    Accessory Class B Class C Class D Class E Class EE Class EE Class F Class G Class G Class GG
    Description 41″ x 8″ 5 5¹/² x 10 6′ x 11″ 5¹/²” Axde. 6″ Axie. 61/2″ x 12″ 7’x1 12″ 61/2″ Axle. Axle.
    Pulling Shoe No. F0442 is included as part of basic machine F0443 F0443 F0443
    Pulling Shoe Insert Adapter F0440 F0437 F0438 F0439 F0439 F0441 F0441 — — —
    Guide Tube & Cap Screw Assembly F0435-1 F0435-2 E2605 E2606 E2607 E2608 E2609 E2611 E2610 E2612
    Cap Screw** H0423 H0424 H0425 H0426 H0427 H0425 H0428 H0430 H0429 H0429
    Guide Tube Adapter B1247 B1246 B1246 B1248 B1248 B1248 B1248 B1248 B1248 B1248
    Installing Tube No. D1044 is included as part of basic machine D1045 D1045 D1045
    Installing Tube Adapter Ring B1243 D1037 D1038 D1039 D1039 D1040 D1040 D1042 D1041 D1041



    Note: Adapter listed above are for servicing the following roller bearing assemblies: Brenco “Crown-Taper”, New Depature -Hyatt ” HyRoll Taper”, SKF “Expediter” and Timken “AP”.
    * Screws are supplied with the guide gtube and sholud be order as replacement only.

    Specification

    Model No. Stroke Capacity (Ton) A B (mm) C (mm) D (mm) E (mm) F (mm)
    (mm) Pull Inst. (mm) Weight (kg)
    CTRB100T 392 100 68 652 370 1047 900 1940-2209 1530 590
    CTRB100TE* 392 100 68 652 370 1047 900 1940-2209 1530 805
    CTRBU100TE* 254 100 68 627 384 731 909 1299 1175 410

    Electric Pump – Specifications

    Model Acting Reservoir Function Motor Oil Del. (c.c./min. @ )
    No. Capacity (c.c.) O(psi) 100(psi) 5000(psi) 10000(psi)
    APE-554. Double 11000 Adv./Hold /Retract 1.12KW 220V 50/60 Hz Single Phase 8200 7400 840 750
    Read moreDone
  • ASL-RT-Series-1

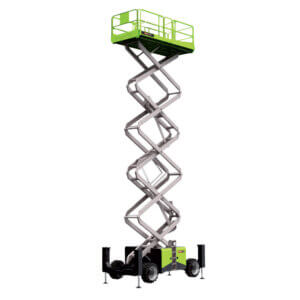

    Rough Terrain Scissor Lifts ASL-RT Series

    ASL42RT
    Model Imperial Metric
    Size
    Work Height 59ft 18m
    A Platform Height- Elevated 52ft 6in 16m
    B Platform Height-Stov 6ft 8in 2.03m
    Platform Dimension (Length) 13ft 1in 3.98m
    D Platform Dimension (Width) 6ft 1.83m
    Platorm Extension 4ft: 3in 1.3m
    Overall Height (Rails Up) 10ft 4in 3.16m
    E Overall Height (Rails Down) 8# 1in 2.47m
    Overall Length 16# 4.88m
    G Overall Width 7# 7in 2.3m
    H Wheebase 9t 6in 2.9m
    IGround Clearance Min 0.275m
    Performance
    Platform Capacity 1500lb 680kg
    Capacity on Deck Extension 510lb 230kg
    Drivo Height 29ft 6in 9m
    Max. Number of Workers 4
    Drive Speed (Stowed) 4mph 6.5km/h
    Drive Speed (Raised) 0.3mph 0.5km/h
    Turning Radius (Inside) 9ft 2.75m
    Turning Radius (Outside) 19ft 5.8m
    Up/Down Time 60/65s
    Gradeability 40%
    Max. Working Slope (Lateral/Vertical) 21/3°
    Drive 4WD
    Brake 315/55 D20 Foam-filled Tires
    Power
    Engine Kubota v2403-M-DI
    Engine Power 36kw/2600rpm
    Fuel Tank Capacity 27.7 (us gal) 105L
    Diesel Tank 26.4 (us gal) 100L
    Weight
    Gross 19070lb 8650kg
    Read moreDone
