Showing all 5 results
TECHNICAL PARAMETERS
| Model | AJZC-129 |
| Rated Lifting Force | 12 Ton |
| Safety Factor | 4:1 |
| Lifting Distance | 310-5100mm |
| Locking form | Manual, Self-act |
| Lifting out form | Manual, Pneumatic, Hydraulic |
| Rate pressure of Hydraulic column | 720 Bar |
| Rate pressure of Pneumatic Column | 8bar |
TECHNICAL PARAMETERS:

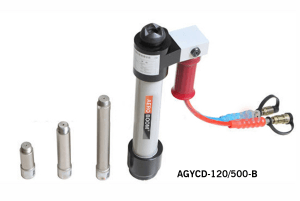

| Model | AGYCD-63-120/350-A | AGYCD-120/500-B |
| Rated Working Pressure | 720 (10440 psi) | 720 (10440 psi) |
| Max. Lifting Force | 120KN | 120KN |
| Closed Length | 350mm | 500mm |
| Lifting Scope | 350mm-1080mm | 460mm-1060mm |
| Length of Extra Piston Bars I/II/III | 100/175/275mm | 100/175/275mm |
| Weight | 10Kg (22lbs) | 11.3Kg (24.2lbs) |
| Dimensions L*W*H | 350x260x90mm | 500x185x97mm |
TECHNICAL PARAMETERS:
| Model | AGYCD-100-208/600-C |
| Rated Working Pressure | 720 (10440 psi) |
| Max. Lifting Force | 90KN (1st Stage) 200KN ( 2nd Stage) |
| Closed Length | 460mm |
| Lifting Scope | 460mm-1060mm |
| Weight | 13.7Kg (30.2lbs) |
| Dimensions L*W*H | 460x200x110mm |
TECHNICAL PARAMETERS:
| Model | AGYCD-120/570-Q |
| Rated Working Pressure | 720 (10440 psi) |
| Max. Extending Force | 120KN |
| Closed Length | 350mm |
| Working Scope | 220mm |
| Weight | 9.4Kg (20.7lbs) |
| Dimensions L*W*H | 350x180x90mm |
TECHNICAL PARAMETERS
| Model | Rated Load | Folded Length | Opening Length | Handle Force Needed | Winch Mechanical Principles | Lifting Distance | Wire Length | Weight | Dimension
(L*W*H) |
Weight of winch |
| ASJ500/2.2-A | 500Kg | 2.55M | 3.7M | 200N | 12:1 | 3.2m | 30m | 90kg | 2550x300x300mm | 30 kg |
| 1100lbs | 100in | 145.5in | 45lbs | 12:1 | 126in | 1181 in | 198lbs | 100×11.7×11.7in | 66lbs |
