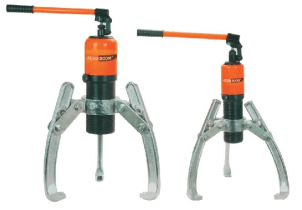

Hydraulic Inbuilt Puller Aib (Eco Series)

MModel Number. Capacity (Tonne) Stroke (mm) JAW No. Max Spread A (mm) Max. Reach B (mm) Thickness of Jaw C (mm) Thickness of Jaw Tip D (mm) Height H (mm) Weight (kg) AIB-05 5 50 3 200 140 26 11 400 7.6 AIB-10 10 60 3 250 170 30 13 500 10.1 AIB-20 20 70…

Description

  • Inbuilt Safety Relief Valve prevents Accidental Over pressurisation of the puller.
  • 360 degree rotary handle Swivel Clevis allows pumping from all directions.
  • Spring loaded live centering cone allows easy centering of puller on shaft.
  • Bright chrome finish on jaws and head to resist corrosion.
  • 5. 5, 10 & 20 ton sets are supplied in a plastic carrying case, 30 & 50 ton sets are supplied in a robust wooden box.
  • 2 and 3 jaw combination puller cross head for variety of applications.
  • The jaws are made of high strength, heat treated steel alloy for safety and durability.
  • Light weight, compact, safe and easy to carry. one man operation & is best suited for all industries.
