  • Rescue Tripod

    Rescue Tripod

    TECHNICAL PARAMETERS

    Model Rated Load Folded Length Opening Length Handle Force Needed Winch Mechanical Principles Lifting Distance Wire Length Weight Dimension

    (L*W*H)

    		 Weight of winch
    ASJ500/2.2-A 500Kg 2.55M 3.7M 200N 12:1 3.2m 30m 90kg 2550x300x300mm 30 kg
    1100lbs 100in 145.5in 45lbs 12:1 126in 1181 in 198lbs 100×11.7×11.7in 66lbs
    Read moreDone
  • Roll-Bed Press 80 to 200 ton

    Roll-Bed Press 80 to 200 ton

    Features: The original, patented Roll-Bed design. Bed rolls out for easy loading and unloading with a crane or other lifting device. Movable work head glides easily side to-side for full off-center load capacity across width of upper frame. “Daylight” is 1283 x 1524mm for 80- and 100-ton models; 1302 x 1625mm on 150- and 200-ton…

    Read moreDone
  • m7

    Roller Bearing Puller/ Installer 100 Ton – CTRB SERIES ( Cartridge Taper Roller Bearing Puller Rail Road Edition)

    Accessory Description
    Pulling Shoe Insert Adapter
    Guide Tube & Cap Screw Assembly
    Cap Screw**
    Guide Tube Adapter
    Installing Tube Adapter Ring

    Class & Size(inch) of bearing assembly to be serviced

    Accessory Class B Class C Class D Class E Class EE Class EE Class F Class G Class G Class GG
    Description 41″ x 8″ 5 5¹/² x 10 6′ x 11″ 5¹/²” Axde. 6″ Axie. 61/2″ x 12″ 7’x1 12″ 61/2″ Axle. Axle.
    Pulling Shoe No. F0442 is included as part of basic machine F0443 F0443 F0443
    Pulling Shoe Insert Adapter F0440 F0437 F0438 F0439 F0439 F0441 F0441 — — —
    Guide Tube & Cap Screw Assembly F0435-1 F0435-2 E2605 E2606 E2607 E2608 E2609 E2611 E2610 E2612
    Cap Screw** H0423 H0424 H0425 H0426 H0427 H0425 H0428 H0430 H0429 H0429
    Guide Tube Adapter B1247 B1246 B1246 B1248 B1248 B1248 B1248 B1248 B1248 B1248
    Installing Tube No. D1044 is included as part of basic machine D1045 D1045 D1045
    Installing Tube Adapter Ring B1243 D1037 D1038 D1039 D1039 D1040 D1040 D1042 D1041 D1041



    Note: Adapter listed above are for servicing the following roller bearing assemblies: Brenco “Crown-Taper”, New Depature -Hyatt ” HyRoll Taper”, SKF “Expediter” and Timken “AP”.
    * Screws are supplied with the guide gtube and sholud be order as replacement only.

    Specification

    Model No. Stroke Capacity (Ton) A B (mm) C (mm) D (mm) E (mm) F (mm)
    (mm) Pull Inst. (mm) Weight (kg)
    CTRB100T 392 100 68 652 370 1047 900 1940-2209 1530 590
    CTRB100TE* 392 100 68 652 370 1047 900 1940-2209 1530 805
    CTRBU100TE* 254 100 68 627 384 731 909 1299 1175 410

    Electric Pump – Specifications

    Model Acting Reservoir Function Motor Oil Del. (c.c./min. @ )
    No. Capacity (c.c.) O(psi) 100(psi) 5000(psi) 10000(psi)
    APE-554. Double 11000 Adv./Hold /Retract 1.12KW 220V 50/60 Hz Single Phase 8200 7400 840 750
    Read moreDone
  • ASL-RT-Series-1

    Rough Terrain Scissor Lifts ASL-RT Series

    ASL42RT
    Model Imperial Metric
    Size
    Work Height 59ft 18m
    A Platform Height- Elevated 52ft 6in 16m
    B Platform Height-Stov 6ft 8in 2.03m
    Platform Dimension (Length) 13ft 1in 3.98m
    D Platform Dimension (Width) 6ft 1.83m
    Platorm Extension 4ft: 3in 1.3m
    Overall Height (Rails Up) 10ft 4in 3.16m
    E Overall Height (Rails Down) 8# 1in 2.47m
    Overall Length 16# 4.88m
    G Overall Width 7# 7in 2.3m
    H Wheebase 9t 6in 2.9m
    IGround Clearance Min 0.275m
    Performance
    Platform Capacity 1500lb 680kg
    Capacity on Deck Extension 510lb 230kg
    Drivo Height 29ft 6in 9m
    Max. Number of Workers 4
    Drive Speed (Stowed) 4mph 6.5km/h
    Drive Speed (Raised) 0.3mph 0.5km/h
    Turning Radius (Inside) 9ft 2.75m
    Turning Radius (Outside) 19ft 5.8m
    Up/Down Time 60/65s
    Gradeability 40%
    Max. Working Slope (Lateral/Vertical) 21/3°
    Drive 4WD
    Brake 315/55 D20 Foam-filled Tires
    Power
    Engine Kubota v2403-M-DI
    Engine Power 36kw/2600rpm
    Fuel Tank Capacity 27.7 (us gal) 105L
    Diesel Tank 26.4 (us gal) 100L
    Weight
    Gross 19070lb 8650kg
    Read moreDone
  • Sidewinder Jacks (Mini Jacks)

    Sidewinder Jacks (Mini Jacks)

    Model Number Capacity Stroke Retracted Height min. Max. Height No. pump Stroke to Ext. Piston 25.4 mm Saddle Dia. Base Size Dia. Pump Handle Length Handle effort at rated cap. Carry Handle Product Weight
      Ton (mm) (mm) (mm) mm mm (mm) (mm) Kg   Kg
    AB-9105 5 19 63.5 85.7 30 29 73.8 240 26 No 1.9
    AB-9205 5 38 88.9 130.2 38 29 73.8 240 26 No 2.4
    AB-9210 10 30 120.7 149.2 36 42.1 109.9 440 28 No 5.5
    AB-9220 20 30 130.2 160.3 46 52.8 119.9 605 35 No 8
    Read moreDone
  • Single Out-put Motor Pump

    Single Out-put Motor Pump

    Technical Parameters

    Model ABJQ-63/0.7-Q
    Power Japanese Honda Engine GXH50 Motor Power
    Rated Working Speed 4800±200rpm Gasoline Volume 0.77L 47 in3
    Working Pressure 720 Bar 10440 psi Hydraulic Oil Volume 1.7L 103.7 in3
    Rated Output Flow (High Flow) =0.65L/min 39.6 in3/min Weight =14Kg 30.8lbs
    Rated Output Flow (Low flow) =2.1L/min 128.1 in3/min Dimensions (L*W*H) 390x340x460 mm 12.6×10.6×15.4in
    Read moreDone
  • SPLITFLOW - Synchronous Lifting System – Power Packs Me##m53g

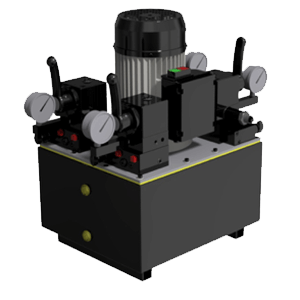

    SPLITFLOW – Synchronous Lifting System – Power Packs Me##m53g

    Features

    The Split Flow hydraulic power packs have two or four independent outlets delivering a constant amount of oil even if the pressure in each line is not the same.
    They are equipped with:

    – 3-phase electric motor ;
    – Matched pump and tank ;
    – 2 or 4 (one for each port) 4-way, 3-position manual control valves with piloted check and 150 bar pressure setting on return B port ;
    – pressure gauges (one for each port).

    OPERATIONAL AREAS

    They are an efficient and economical solution particularly suitable to pressure up a maximum of 4 cylinders even with different loads. Given that they are based on equal geometrical pressure lines, without any external control on the stroke, Split Flow power packs provide for ±3% synchronous lifting with visual control of the operations.

    Read moreDone
  • Hydraulic Torque Wrench

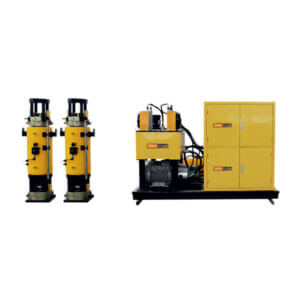

    Strand Hydraulic Cylinder – ASH Series

    Model Capacity Kn Rated Working Pressure Bar Stroke mm Hole Diameter mm Steel Strand Diameter mm Steel Strand Quantity mm Weight Ton
    ASH-600B 618 250 500 110 17.8 4 720
    ASH-750 746 250 500 125 17.8 5 925
    ASH-1000C 1000 230 300 160 15.24 10 937
    ASH-1700 1700 215 500 195 17.8 12 1800
    ASH-2000F 2049 250 300 176 15.24 19 1300
    ASH-2000H 2052 260 500 240 17.8 16 2250
    ASH-2300 2300 250 500 240 17.8 16 2180
    ASH-2500 2474 250 500 240 17.8 18 2460
    ASH-3500A 3525 250 300 225 15.24 31 3000
    ASH-3500C 3585 270 500 290 17.8 23 3600
    ASH-4500A 4500 250 400 300 17.8 31 3980
    ASH-6000A 6126 250 400 405 17.8 42 6830
    ASH-9000 9113 245 500 480 17.8 66 15000
    Read moreDone
  • fasteners

    Three-level Pump

    TECHNICAL PARAMETERS:

    Model AEHP-1.7
    Rated Working Pressure 720 bar (10440psi)
    The first level out-put 22ml/min
    The second level out-put 5.7ml/min
    The third level out-put 1.9ml/min
    Weight =9.7kg
    Dimension (L*W*H) 800*190*180mm
    Read moreDone
  • Toe Bottle Jacks

    Toe Bottle Jacks

    Model Capacity (Ton) Min. Height (mm) Max. Height (in) Weight
    Toe Head Toe Head Toe Head Kg
    ATJ-102 2 3 16 238 128.5 349 8
    ATJ-105 5 6 22 298.45 141.4 409.5 24
    ATJ-110 10 14 28.5 333.5 173 460.5 837.9

    FEATURES | ATJ-2 SERIES:

    1. Complies with ANSI/ASME B30.1, CE/GS standards.
    2. Compact and stable construction.
    3. Housing revolves 360o .
    4. Lowering speed can be accurately adjusted.
    5. Safety valve for overload protection.
    Model Capacity (Ton) Min. Height (mm) Max. Height (in) Weight
    Toe Head Toe Head Toe Head Kg
    ATJ-205 2 5 24.9 368 230.1 572 24.9
    ATJ-210 5 10 25 420.1 260 650 34.9
    ATJ-225 10 25 57.9 504.9 272 720 101.78
    Read moreDone
  • Triple Output Motor Pump

    Triple Output Motor Pump

    Technical Parameters

    Model ABJQ-3-63/0.6 Applicative Temperature -30-55®C
    Power German Kohler XT-6 Engine Motor Power 2.6 kw
    Rated Working Speed 3600±200rpm Gasoline Volume 1L 61 in3
    Working Pressure 720 Bar 10440 psi*3 Hydraulic Oil Volume 9L 549 in3
    Rated Output Flow (High Flow) =0.6L/min*3 39.6 in3/min*3 Weight 48Kg 105.8lbs
    Rated Output Flow (Low flow) =2.3L/min*3 128.1 in3/min*3 Dimensions (L*W*H) 600x460x420 mm 23.6×18.1×16.5in
    Read moreDone
  • Trolley Mounted Posi Lock Phs Hydraulic Puller Set

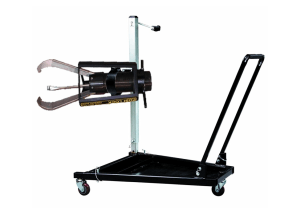

    Trolley Mounted Posi Lock Phs Hydraulic Puller Set

    Model Number Capacity (ton) Number of Jaws Reach (mm) Spread (mm)
    PHMS-206 5 2 152.4 12.7 to 203.2
    PHMS-106 5 3 152.4 12.7 to 203.2
    PHMS-208 10 2 203 19 to 305
    PHMS-108 10 3 203 19 to 305
    PHMS-210 15 2 254 25 to 381
    PHMS-110 15 3 254 25 to 381
    PHMS-213 25 2 305 64 to 457
    PHMS-113 25 3 305 64 to 457
    PHMS-216 50 2 356 76 to 635
    PHMS-116 50 3 356 76 to 635



    Read moreDone
